25t Rail Type Automobile Mold Transport Vehicle Rail Transfer Cart

Henan Remarkable Intelligent Technology Co., Ltd
Contact Now

25t Rail Type Automobile Mold Transport Vehicle Rail Transfer Cart

Brand Name : RMK

Model Number : KPX

Certification : CE.ISO

Place of Origin : CHINA

MOQ : 1 set

Price : customized

Payment Terms : T/T

Supply Ability : 300 set per year

Delivery Time : 60 days

Packaging Details : tarp

Name : 15t RGV (Rail Guided Vehicle) cart for coil handling in factory

load capacity : 15T

Wheel material : steel

Brake : Electric motor brakes

Max Capacity : 200ton

Application : Warehouse, Factory, Hospital

Material : Steel

Usage : Transportation

Warranty : 1 Year

Contact Now

25t Rail type automobile mold transport vehicle


This type of transport vehicle operates on a specific track, usually a track system set up inside large automotive mold production workshops or automotive assembly workshops.
The track can ensure the accuracy and stability of vehicle travel, and can accurately transport car molds to designated processing equipment or assembly stations according to the preset route.
For example, in the transportation process of automotive stamping molds, rail transport vehicles can transport the molds from the mold storage area to the stamping production line, avoiding potential route deviations and collisions that may occur during ground transportation in the workshop.

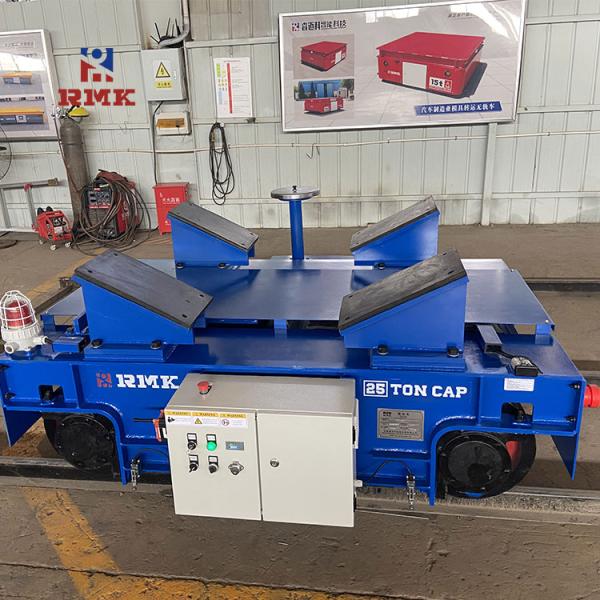

25t Rail Type Automobile Mold Transport Vehicle Rail Transfer Cart25t Rail Type Automobile Mold Transport Vehicle Rail Transfer Cart

The car body is generally made of high-strength steel to provide sufficient strength and rigidity to carry the weight of the car mold.
The design of the frame should consider the shape and size of the mold. Some frames are flat and can easily accommodate molds of various shapes;
Some car frames also have special brackets or slots for fixing specific types of car molds, such as large car body stamping molds.
The welding process requirements for the frame are very high, ensuring that the welding points can withstand enormous pressure and tension, and prevent frame fracture during transportation.
Automotive molds must be securely fixed during transportation to prevent movement and damage.
Fixed devices include fastening straps, fixtures, and positioning pins.
The fastening strap is usually a high-strength nylon or steel strip, which is tightened by a buckle or winch to firmly fix the mold to the frame.
Fixtures are metal components designed according to the specific shape of the mold, which can clamp the edges or protruding parts of the mold.
The positioning pin can be inserted into the corresponding hole on the mold and frame to ensure accurate positioning of the mold during transportation and prevent any deviation.

Technical parameters for Battery powered electric transfer carts KPX series
Model KPX-2t KPX-5t KPX-10t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-150t
Rated Load(t) 2 5 10 20 25 30 40 50 150
Table Size(mm) Length 2000 3500 3600 4000 4500 4500 5000 5500 10000
Width 1500 2000 2000 2200 2200 2200 2500 2500 3000
Height 450 500 500 550 600 600 650 650 1200
Wheel Base(mm) 1200 2500 2600 2800 3200 3200 3800 4200 7000
Rail Inner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Ø270 Ø300 Ø300 Ø350 Ø400 Ø400 Ø500 Ø500 Ø600
Wheel Quantity 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 75
Running Speed(m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.2 1.6 2.2 3 3.5 4 5 15
Battery Capacity (Ah) 180 180 180 180 250 250 300 330 600
Battery Voltage(V) 24 36 48 48 48 48 48 48 72
Running Time When Full Load 4.32 5.4 4.8 4 4 3.5 3.6 3.3 2.9
Running Distance for One Charge (Km) 6.5 8.1 7.2 4.8 4.8 4.2 4.3 4 3.2
Max Wheel Load (KN) 14.4 25.8 42.6 77.7 94.5 110.4 142.8 174 266
Reference Weight(t) 2.8 3.6 4.2 5.9 6.5 6.8 7.6 8 27

25t Rail Type Automobile Mold Transport Vehicle Rail Transfer Cart25t Rail Type Automobile Mold Transport Vehicle Rail Transfer Cart25t Rail Type Automobile Mold Transport Vehicle Rail Transfer Cart
