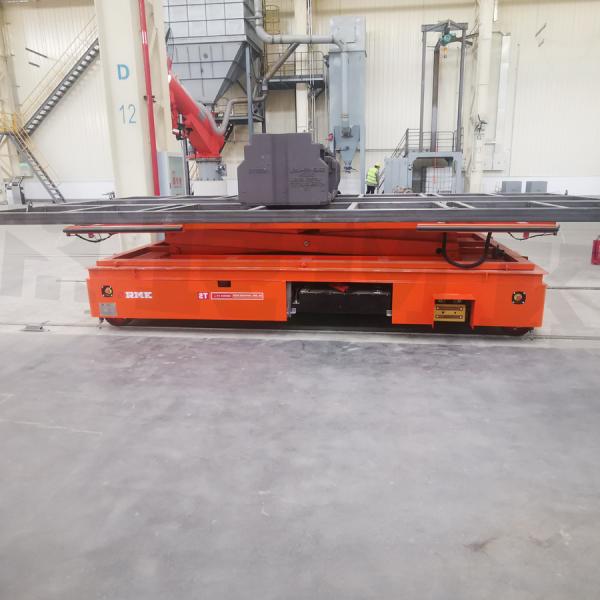

8T model Rail battery powered rail transfer car
advantage of battery
Environmental Protection and Energy Saving: Powered by electricity, with no exhaust emissions and no pollution to the environment, meeting modern environmental protection requirements.
Meanwhile, electric propulsion has higher efficiency and lower energy consumption costs compared to traditional fuel powered rail cars.
Smooth operation: The electric drive system has good speed regulation performance, making the rail car smoother during start-up, acceleration, deceleration, and parking, reducing the impact on goods and equipment, and improving transportation safety and reliability.
Safe and reliable: No fuel storage and combustion process, reducing the risk of fire and explosion.
At the same time, the cable reel power supply system has complete protection devices, such as overcurrent protection, leakage protection, etc. Once abnormal situations occur, the power can be cut off in a timely manner to ensure the safety of personnel and equipment.
application area
Internal transportation of industrial plants: In large factories, warehouses, and other places, cable reel powered rail cars are often used for the transportation of raw materials, semi-finished products, and finished products.
It can run on the track inside the factory according to the preset route, transporting goods from the production workshop to the warehouse or other designated locations, achieving efficient material circulation.
Port terminal operations: Used for container handling and loading and unloading operations at the port terminal.
It can move quickly and smoothly on the tracks of the dock, lifting containers from cargo ships and transporting them to yards or warehouses, improving the operational efficiency of the port.
Railway freight yard operation: In railway freight yards, it can be used for the grouping, decomposition, and transportation of goods.
It can pull freight cars to move on the tracks of the freight yard, classify and combine goods from different destinations, and facilitate subsequent transportation.
Development Trends
The degree of automation and intelligence continues to improve: by combining advanced sensor technology, control technology, and communication technology, the automated operation and intelligent control of rail cars can be achieved.
For example, by installing sensors such as LiDAR and cameras, rail cars can achieve functions such as automatic navigation, obstacle avoidance, and cargo recognition.
High adaptability and multifunctionality: Future cable reel powered rail cars will have stronger environmental adaptability and be able to operate stably in different working environments and conditions.
At the same time, in order to meet diverse user needs, rail cars will develop towards multifunctionality, such as adding functions such as lifting and loading and unloading.
Integration and development with other technologies: It will deeply integrate with technologies such as the Internet of Things, big data, and cloud computing to achieve remote monitoring, fault diagnosis, and data analysis of vehicles.
By collecting and analyzing real-time operational data of rail cars, management personnel can timely grasp the vehicle's operating status, carry out maintenance and upkeep in advance, and improve the vehicle's service life and operational efficiency.
| Technical parameters for Battery powered electric transfer carts KPX series |
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| | Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| | Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 |
