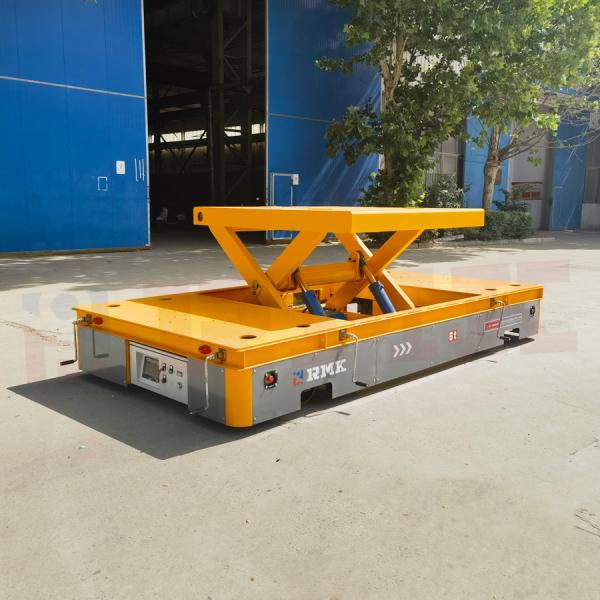

5 Tons Scissor Lift Omnidirectional Mobile Steering Wheel Transfer Cart

Name: 5 Tons Scissor Lift Omnidirectional Mobile Steering Wheel Transfer Cart
Brand: Remarkabl
Price: 1 USD

China 5 Tons Scissor Lift Omnidirectional Mobile Steering Wheel Transfer Cart wholesale

Brand Name : Remarkabl

Model Number : RWP/KPX/RGV/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : transport cart

Power Supply : Maintenance Free Battery /lithium Battery/cable

Climbing slope : No More Than 3 Degrees /customized

Brake : Electric Motor Brakes

Control Method : Remote Control/ Hand Operate Pendant/PLC

Warranty : 1 Year

Safety Features : Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor

feature : Omnidirectional movement/Lifting/Clamping device/customized

Move Way : Forward,backward,and can rotate 360 degrees in place ,turning while driving with no stop

Application : Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Running speed : 0-25 M/min(Adjustable)

Key words : mold transport cart,battery transfer trolley，battery transfer cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart

Steering mode : Differential , hydraulic, steering wheel Omnidirectional movement

model : Trackless transfer cart RWP/AGV

Contact Now

5 Tons Scissor Lift Omnidirectional Mobile Steering Wheel Transfer Cart

^{Technical parameter:}

^{Load capacity (t): 5T}

^{Dimensions (mm): 4000 * 2000 (L * W)}

^{Table height (mm): 550}

^{Power supply mode: battery}

^{Walking methods: forward and backward, turning while walking, diagonal movement, lateral movement}

^{The characteristics of steering wheel drive are as follows:}

^{1. Has great carrying capacity;}

^{2. Large wheel diameter, good passability;}

^{3. The walking and steering motors are independent, allowing the motor power to be fully utilized.}

^{4. Ton steering wheel omnidirectional transfer vehicle, capable of free and flexible movement, forward and backward, left and right turns, diagonal movement, etc. The car is equipped with a visual operation screen and wireless remote control. There are also laser obstacle avoidance, emergency stop switch, anti-collision edge contact, and multi-level safety protection configuration. The car body has a lifting platform that can be automatically raised and lowered. Silent operation and automatic intelligent charging.}

5 Tons Scissor Lift Omnidirectional Mobile Steering Wheel Transfer Cart

^{Technical parameters for trackless electric transfer carts}
^{rated load(t)}	⁵	¹⁰	¹⁵	²⁰	³⁰	⁴⁰	⁵⁰	¹⁵⁰
^{impacted rated load(t)}	^7.5	¹⁵	^22.5	³⁰	⁴⁵	⁶⁰	⁷⁵	²²⁵
^{structure of frame}	^{steel plates welded, beam structure}
^{max. wheel load(t)}	^2.8	^4.3	^4.8	^5.6	^7.7	¹⁰	¹²	²⁷
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{table size(mm)}	^3000×2000	^3600×2000	^4000×2200	^4500×2200	^5000×2200	^5500×2300	^6000×2300	^10000×3000
^{height of the whole cart(mm)}	⁴⁵⁰	⁵³⁰	⁶⁰⁰	⁶⁰⁰	⁶⁵⁰	⁷⁰⁰	⁷⁰⁰	¹²⁰⁰
^{ground clearance(mm)}	⁵⁰							⁷⁵
^{wheels base(mm)}	¹⁵⁰⁰		¹⁷⁰⁰			¹⁸⁰⁰		²⁰⁰⁰
^{axles distance(mm)}	²⁵⁰⁰	³¹⁰⁰	³⁴⁰⁰	³⁹⁰⁰	⁴³⁰⁰	⁴⁸⁰⁰	⁵²⁰⁰	¹⁰⁰⁰⁰
^{turning radius(mm)}	²⁵⁰¹	³¹⁰¹	³⁴⁰¹	³⁹⁰¹	⁴³⁰¹	⁴⁸⁰¹	⁵²⁰¹	¹⁰⁰⁰¹
^{turning type}	^{turning while driving with no stop}
^{control method for turning}	^{control button}
^{turning structure}	^mechanical
^{motor power(Kw)}	^3.5	⁵	⁶	⁷	¹⁰	¹²	¹⁵	¹⁵
^{wheel diameter(mm)}	^{Ф300 x 4}	^{Ф350 x 4}		^{Ф400 x 4}	^{Ф400 x 6}	^{Ф500 x 6}		^{Ф600 x 8}
^{wheel material}	^{ZG55+hydropur ture}
^{running speed(m/min)}	^0-15					^0-12
^{brake principle}	^{electric magnetic brake}
^{operation method}	^{with wire or no wire}
^{battery model}	^{D-250 x 24}	^{D-33 x 24}	^{D-400 x 24}	^{D-440 x 24}	^{D-250 x 36}	^{D-330 x 36}	^{D-440 x 36}	^{D-600 x 36}
^{battery maintenance}	^{free of maintenance}
^{charger's installation}	^{installed on cart}				^split-type
^{charger function}	^{automatic charging}
^{radar control}	^{3-0.3m, automatic stop for obstacles}
^{warning equipment}	^{sound and light}
^{other functions}	^{turning light, night light and power display}

5 Tons Scissor Lift Omnidirectional Mobile Steering Wheel Transfer Cart
