Large Table 12 Tons Omni-directional Move Paper Coil Transfer Trolley

Name: Large Table 12 Tons Omnidirectional Move Paper Coil Transfer Trolley
Brand: Remarkable
Price: 1 USD

China Large Table 12 Tons Omni-directional Move Paper Coil Transfer Trolley wholesale

Brand Name : Remarkable

Model Number : RWP-12T

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 500 sets per year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

Color : Customized

Table Size : Customized

Load Capacity : 1-300 tons

Operation Mode : Remote Control/Handle remote control/PLC

Running Speed : 0-25m/min Stepless speed regulation/ Customized

Safety Device : Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor

Wheel Material : Press fit solid rubber wheels

Application : Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Contact Now

^{Large Table 12 Tons Omni-directional Move Paper Coil Transfer Trolley}

^{Large Table 12 Tons Omni-directional Move Paper Coil Transfer Trolley’s Application Range Includes: Mold Field, Automotive Field, Steel, Heavy Industry, Light Industry, Chemical Industry, Shipbuilding, Engineering, Aerospace, Coal, Nuclear Energy, Water Conservancy Engineering, Etc. In Order To Meet The Needs Of Industrial Transportation, We Have Designed A Variety Of Trackless Transfer Vehicles According To Customer Needs, Making Transportation More Convenient, Helping Customers Save Costs, Improve Efficiency, And Have Been Well Evaluated By Customers Around The World.

Main Parameters about battery powered transfer cart:
1.Load capacity:12T
2.Table size: 4000*2000*700mm
3.Power supply mode: Maintenance-free lead-acid batteries
4.Operate mode: remote control+hand pendant
5.Speed:0-25m/min
6.Hydraulic lifting height: 520mm}

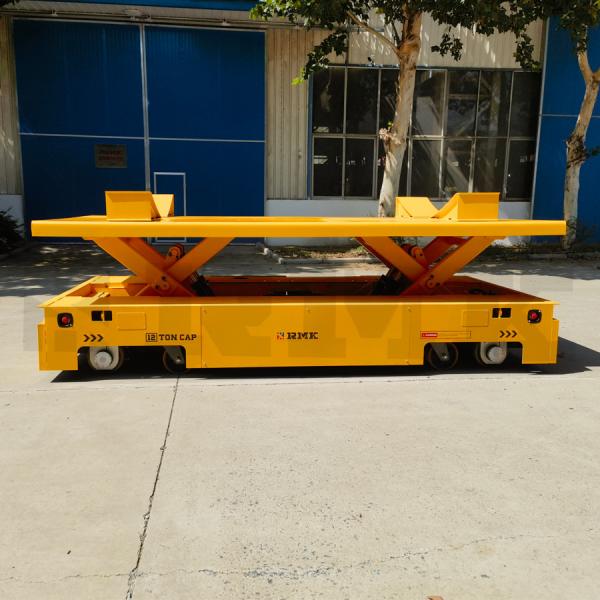

^{The 12 Tons Omni-Directional Scissor Lifting Transfer Cart Is A Multifunctional Battery Transfer Cart That Can Accommodate Handling Carts Of Various Drum Height Sizes. Facilitate The Transportation And Handling Of Large And Heavy Goods.We Develop And Manufacture Machinery And Equipment For Moving, Lifting, And Positioning Large Loads In Industry. Our Proprietary Tire System Provides Precise Control And Flexibility Solutions In Narrow Spaces.To Prevent The Deformation Of The Wheels Caused By Prolonged Placement Of Goods On The Trolley's Body, Our Technical Department Has Installed Manually Folding Hydraulic Support Legs For This Transfer Cart.}

Technical parameters for Battery powered electric transfer carts
Model		RWP-2t	RWP-5t	RWP-10t	RWP-20t	RWP-25t	RWP-30t	RWP-40t	RWP-50t	RWP-150t
Rated Load(T)		2	5	10	20	25	30	40	50	150
Table Size(mm)	Length	2000	3500	3600	4000	4500	4500	5000	5500	10000
	Width	1500	2000	2000	2200	2200	2200	2500	2500	3000
	Height	450	500	500	550	600	600	650	650	1200
Running Speed(m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-18
Battery Capacity (Ah)		180	180	180	180	250	250	300	330	600
Battery Voltage(V)		24	36	48	48	48	48	48	48	72
1.Load capacity, table size and rail gauge can be customized; 2.Options: Remote radio control (imported or made in china); 3.Automatic stop when detecting obstacle or person ,limit switches (to limit travel); 4.Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);
