Hybrid Navigation AGV Automated Handling Cart Omnidirectional Mobile Transfer Cart

Name: Hybrid Navigation AGV Automated Handling Cart Omnidirectional Mobile Transfer Cart
Brand: Remarkabl
Price: 1 USD

China Hybrid Navigation AGV Automated Handling Cart Omnidirectional Mobile Transfer Cart wholesale

Brand Name : Remarkabl

Model Number : RWP/KPX/RGV/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Transfer Cart

Power Supply : Maintenance Free Battery /lithium Battery/cable

Climbing slope : No More Than 3 Degrees /customized

Brake : Electric Motor Brakes

Control Method : Remote Control/ Hand Operate Pendant/PLC

Warranty : 1 Year

Safety Features : Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor

feature : Omnidirectional movement/Lifting/Clamping device/customized

Move Way : Automatic operation, navigation driving

Application : Military Industry，Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Running speed : 0-25 M/min(Adjustable)

Key words : mold transport cart,battery transfer trolley，battery transfer cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart

Steering mode : Differential , hydraulic, steering wheel Omnidirectional movement

model : Trackless transfer cart RWP/AGV

Contact Now

Hybrid Navigation AGV Automated Handling Cart Omnidirectional Mobile Transfer Cart

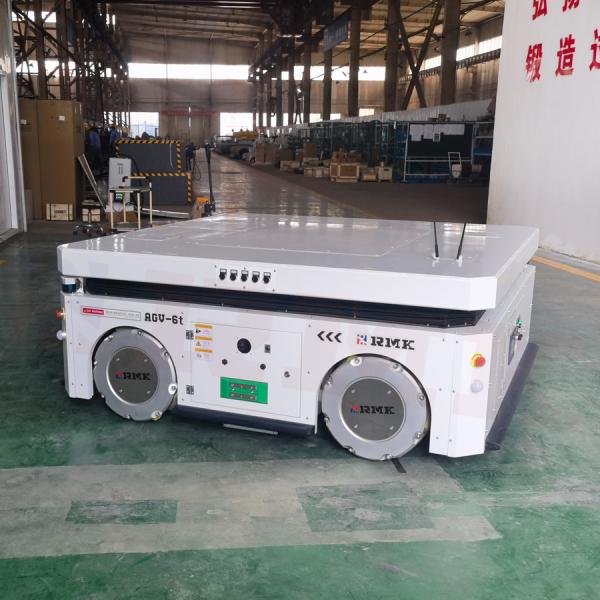

^{The Hybrid navigation AGV automated handling cart Omnidirectional Mobile Transfer Cart}^{designed and produced by Remarkable is applied in the production and handling of the aerospace industry. This automated handling cart adopts magnetic navigation, laser navigation, and QR code navigation, which can be used alone or in combination with auxiliary navigation. It has strong adaptability to the production environment, high degree of automation, and is a very stable automated unmanned handling cart.}

Hybrid Navigation AGV Automated Handling Cart Omnidirectional Mobile Transfer Cart

^{The Hybrid Navigation AGV Automated Handling Cart Omnidirectional Mobile Transfer Cart is a revolutionary new piece of technology that is set to transform the world of automated handling. With its state-of-the-art hybrid navigation system, this cart is able to navigate and operate in a wide range of environments, making it one of the most versatile and adaptable carts on the market.}

AGVAutomated Handling Cart

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Running time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for Once Charge(KM)		6.5	4.8	4	3.8	3.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Hybrid Navigation AGV Automated Handling Cart Omnidirectional Mobile Transfer Cart
