Customized Curved Rail Automated Rail Electric Transport Cart

Name: Customized Curved Rail Automated Rail Electric Transport Cart
Brand: Remarkabl
Price: 1 USD

China Customized Curved Rail Automated Rail Electric Transport Cart wholesale

Brand Name : Remarkabl

Model Number : KPX/RGV/RWP/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Transport Cart

key word : Transfer Cart,coil Transfer Trolley/battery transfer cart ,transfer trolley, industrial rail transfer cart, electric flatcar motorized equipment, battery powered material handling cart,rail transfer trollley

feature : High temperature resistance，explosion-proof，customized

Flat Size : U/V/roller/lifting/explosion-proof/high temperature/Customized

Load Capacity : 1-1000 tons

Material : Welded construction of structural steel，Box girder structure

Model : Rail transfer cart

Operation Mode : Remote Control/Handle remote control/Manual /PLC

Running Speed : 0-25m/min Stepless speed regulation/ Customized

Safety Device : Limit switch，RFID,Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor

Warranty : 1 year

Wheel Material : steel wheel

Application : Industrial Filed, Building,military industry，steel/Metallurgical casting/Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Rail : S-shaped/curved rail

Contact Now

Customized Curved Rail Automated Rail Electric Transport Cart

^{Rail transport cart is a widely used factory production and transportation equipment. It can travel on straight rails, curved rails, S-shaped rails, and circular rails, as well as on cross rails. It can also customize a complete set of automated transport cart solutions according to customer needs.}

^{This time, Remarkable has provided three sets of automated rail transfer carts to customers, including explosion-proof, curved rail operation, and high load and high temperature resistant. These three types of trolleys are designed and produced according to the requirements and functions of different production lines in the customer's factory, improving the customer's needs for automated production lines and greatly improving productivity.}

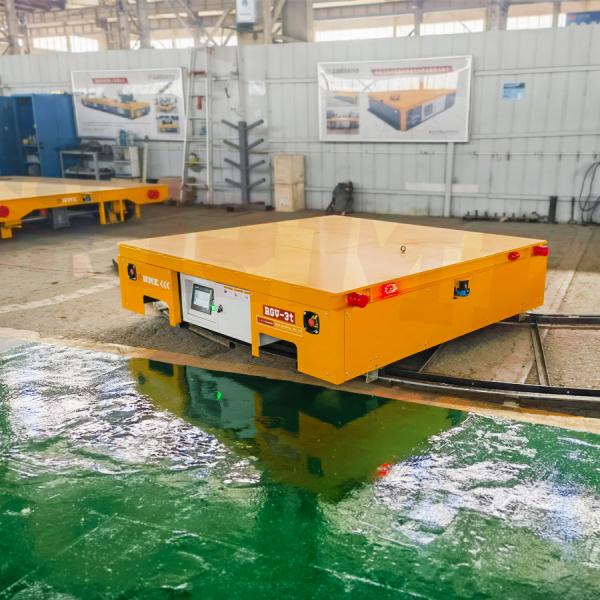

^{Model :RGVB-3T,5T}

^{Table size(mm) :2500*2500 (L*W)}

^{Cart height(mm):400}

^{Power supply:Explosion proof battery}

^{Wheel material :Explosion proof steel wheel}

^{Wheel quantity:4}

^{Operation method:PLC/ Computer control/Wireless remote control & Hand operate pendant}

^{Function:S-shaped/curved rail Turning and walking}

Customized Curved Rail Automated Rail Electric Transport Cart

Technical parameters for rail power transfer carts
Model		KPG-6t	KPG-10t	KPG-16t	KPG-25t	KPG-40t	KPG-63t	KPG-100t	KPG-160t	KPG-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
(mm)	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1100	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1435	1435	1650	2000	2000
Wheel diameter(mm)		400	400	400	500	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Minimum turning radius		30		35	50	55	60	80	100	100
Power mode		Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered
Recommended track model		24kg/m			38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5
