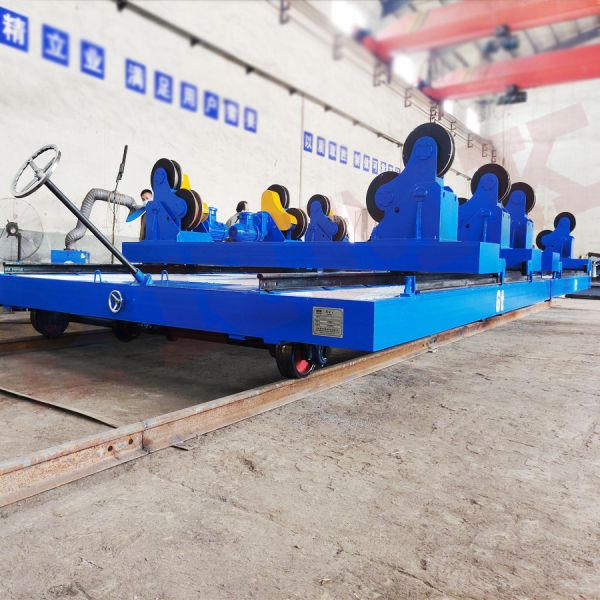

Workshop Motorized Rail Cart Steel Scrap Battery Transfer Cart

Name: Workshop Motorized Rail Cart Steel Scrap Battery Transfer Cart
Brand: Remarkable
Price: 1 USD

China Workshop Motorized Rail Cart Steel Scrap Battery Transfer Cart wholesale

Brand Name : Remarkable

Model Number : KPX

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 sets per year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

Power Supply : Maintenance Free Battery /lithium Battery

Climbing slope : No More Than 2 Degrees /customized

Brake : Electric Motor Brakes

Control Method : Remote Control/ Hand Operate Pendant

Safety Features : Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor

Running Speed : 0-25m/min Stepless Speed Regulation

feature : PLC,visual display screen designed on the electric control cabinet

Move Way : Omnidirectional movement，Forward,backward horizontally and diagonally movement, and can rotate 360 degrees in place ,turning while driving with no stop

Application : Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Contact Now

^{Motorized Workshop Heavy Duty Steel Scrap Battery Rail Transfer Cart}

^{Scrap Battery Transfer Cart For Steel Industry Can Be Divided Into Annular Track Type And Linear Reciprocating Type. The Annular Track Type RGV System Has High Efficiency And Can Work Multiple Vehicles At The Same Time. Generally, Aluminum Alloy Track Is Used; Linear Reciprocating Generally Includes One RGV System For Reciprocating Motion, And The Efficiency Is Relatively Low Compared With The Annular RGV System. RGV System Can Be Used As The Peripheral Equipment Of The Three-Dimensional Warehouse Or Its Own Independent System.}

^{The 10 Tons Scrap Battery Transfer Cart For Steel Industry Can Be Used In Many Occasions, Due To Its Simple Structure, Despite Of The Plant Or Assembly Line, Warehouse Or Port For Heavy Equipment, Industry Material, Mold... Only Exists Tracks, It Can Transport Anywhere.The Battery Is Installed In The Car, And Supply DC Electricity To The Control System, Which Makes The Car Start, Stop, Go Forward, Back Forward And So On. The Rail Flat Car Brings Convenience To Our Short-Distance Heavy Lifting Work, And We Need To Pay Attention To Safe Use Of It To Avoid Unnecessary Damage.}

Technical parameters for electric transfer carts
rated load(t)	5	10	15	20	30	40	50	150
impacted rated load(t)	7.5	15	22.5	30	45	60	75	225
structure of frame	steel plates welded, beam structure
max. wheel load(t)	2.8	4.3	4.8	5.6	7.7	10	12	27
ground requirement	cement floor					steel plate ground
ground requirement	cement floor					steel plate ground
table size(mm)	3000×2000	3600×2000	4000×2200	4500×2200	5000×2200	5500×2300	6000×2300	10000×3000
height of the whole cart(mm)	450	530	600	600	650	700	700	1200
ground clearance(mm)	50							75
wheels base(mm)	1500		1700			1800		2000
axles distance(mm)	2500	3100	3400	3900	4300	4800	5200	10000
turning radius(mm)	2501	3101	3401	3901	4301	4801	5201	10001
turning type	turning while driving with no stop
control method for turning	control button
turning structure	mechanical
motor power(Kw)	3.5	5	6	7	10	12	15	15
wheel diameter(mm)	Ф300 x 4	Ф350 x 4		Ф400 x 4	Ф400 x 6	Ф500 x 6		Ф600 x 8
wheel material	ZG55+hydropur ture
running speed(m/min)	0-15					0-12
brake principle	electric magnetic brake
operation method	with wire or no wire
battery model	D-250 x 24	D-33 x 24	D-400 x 24	D-440 x 24	D-250 x 36	D-330 x 36	D-440 x 36	D-600 x 36
battery maintenance	free of maintenance
charger's installation	installed on cart				split-type
charger function	automatic charging
radar control	3-0.3m, automatic stop for obstacles
warning equipment	sound and light
other functions	turning light, night light and power display
