Omnidirectional Moving Trackless Transfer Cart 160T Trolley Transfer

Name: Omnidirectional Moving Trackless Transfer Cart 160T Trolley Transfer
Brand: Remarkabl
Price: 1 USD

China Omnidirectional Moving Trackless Transfer Cart 160T Trolley Transfer wholesale

Brand Name : Remarkabl

Model Number : RWP/KPX/RGV/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Heavy Load Transporter

Power Supply : Maintenance Free Battery /lithium Battery

Climbing slope : No More Than 2 Degrees /customized

Brake : Electric Motor Brakes

Control Method : Remote Control/ Hand Operate Pendant/PLC

Warranty : 1 Year

Safety Features : Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor

feature : Omnidirectional movement/Lifting/Clamping device/customized

Move Way : Forward,backward,Omnidirectional movement， horizontally and diagonally movement, and can rotate 360 degrees in place ,turning while driving with no stop

Application : Industrial Filed, Machinery manufacturing，Metallurgical casting，steel，Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Running speed : 0-25 M/min(Adjustable)

Key words : battery transfer trolley，battery transfer cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart

Steering mode : Differential , hydraulic, steering wheel

model : heavy load transfer cart

Contact Now

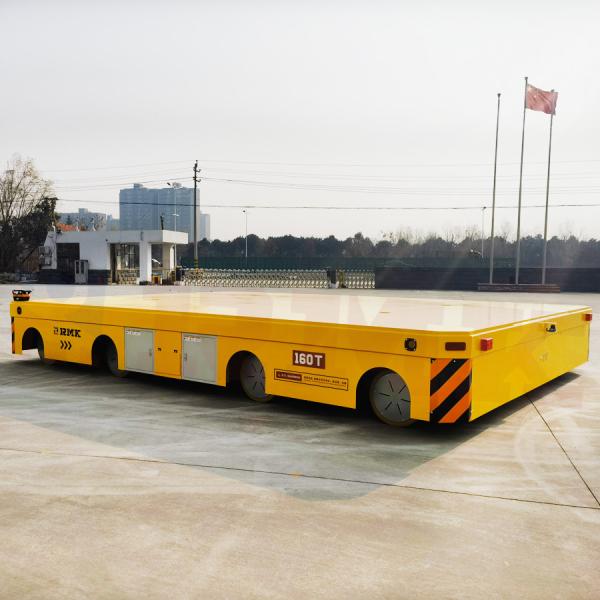

Omnidirectional Moving Trackless Transfer Cart-160 Tons Transporter

^{Remarkable designs and manufactures 2sets of Omnidirectional mobile 160 tons trackless transfer carts, which are sent to Tianjin after various operation tests. The heavy load transporter adopts lithium battery power supply and steering wheel system steering mode. The powerful lithium battery can make the transfer cart work longer and delay the service life of the battery. The steering mode of the steering wheel system can enable the vehicle to move in vertical and horizontal oblique directions, which is very flexible and free. The origin rotation can effectively use the space of the workshop, and the intelligent operation interface can greatly provide work efficiency.}

^{Heavy load 160 tons trackless transfer trolley is used for the transportation of plates, workpieces and other materials in mechanical manufacturing industry.}

^{Heavy load transporter from 5 tons to 300 tons.}

^{They are rugged and modular construction, available in a wide range of products also can be adapted to suit your need.}

^{They are equipped with all the safety devices needed for ground-level machinery movement.}

^{They are an important complement to cranes lifting heavy loads at ground level and the ideal solution for transferring material.}

^{The trackless transfer cart takes the lead-acid battery as the energy, takes the control template as the control core, and uses the operating handle and remote control as the input means to control various actions of the electric vehicle and carry goods. The trackless electric transfer cart is more intelligent and can run on the cement ground or steel plate ground. Including obstacle avoidance controller, audible and visual alarm and intelligent charger, it has the advantages of stable operation, high precision, fast speed, high flexibility, large load and high efficiency. Trackless transport cart is mainly used to transport heavy goods from one workshop to another in the workshop. Remarkable will provide customers with reasonable material transportation scheme with professional technology and manufacturing strength.}

Omnidirectional Moving Trackless Transfer Cart 160T Trolley Transfer

^{Technical parameters for trackless electric transfer carts}
^{rated load(t)}	⁵	¹⁰	¹⁵	²⁰	³⁰	⁴⁰	⁵⁰	¹⁵⁰
^{impacted rated load(t)}	^7.5	¹⁵	^22.5	³⁰	⁴⁵	⁶⁰	⁷⁵	²²⁵
^{structure of frame}	^{steel plates welded, beam structure}
^{max. wheel load(t)}	^2.8	^4.3	^4.8	^5.6	^7.7	¹⁰	¹²	²⁷
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{table size(mm)}	^3000×2000	^3600×2000	^4000×2200	^4500×2200	^5000×2200	^5500×2300	^6000×2300	^10000×3000
^{height of the whole cart(mm)}	⁴⁵⁰	⁵³⁰	⁶⁰⁰	⁶⁰⁰	⁶⁵⁰	⁷⁰⁰	⁷⁰⁰	¹²⁰⁰
^{ground clearance(mm)}	⁵⁰							⁷⁵
^{wheels base(mm)}	¹⁵⁰⁰		¹⁷⁰⁰			¹⁸⁰⁰		²⁰⁰⁰
^{axles distance(mm)}	²⁵⁰⁰	³¹⁰⁰	³⁴⁰⁰	³⁹⁰⁰	⁴³⁰⁰	⁴⁸⁰⁰	⁵²⁰⁰	¹⁰⁰⁰⁰
^{turning radius(mm)}	²⁵⁰¹	³¹⁰¹	³⁴⁰¹	³⁹⁰¹	⁴³⁰¹	⁴⁸⁰¹	⁵²⁰¹	¹⁰⁰⁰¹
^{turning type}	^{turning while driving with no stop}
^{control method for turning}	^{control button}
^{turning structure}	^mechanical
^{motor power(Kw)}	^3.5	⁵	⁶	⁷	¹⁰	¹²	¹⁵	¹⁵
^{wheel diameter(mm)}	^{Ф300 x 4}	^{Ф350 x 4}		^{Ф400 x 4}	^{Ф400 x 6}	^{Ф500 x 6}		^{Ф600 x 8}
^{wheel material}	^{ZG55+hydropur ture}
^{running speed(m/min)}	^0-15					^0-12
^{brake principle}	^{electric magnetic brake}
^{operation method}	^{with wire or no wire}
^{battery model}	^{D-250 x 24}	^{D-33 x 24}	^{D-400 x 24}	^{D-440 x 24}	^{D-250 x 36}	^{D-330 x 36}	^{D-440 x 36}	^{D-600 x 36}
^{battery maintenance}	^{free of maintenance}
^{charger's installation}	^{installed on cart}				^split-type
^{charger function}	^{automatic charging}
^{radar control}	^{3-0.3m, automatic stop for obstacles}
^{warning equipment}	^{sound and light}
^{other functions}	^{turning light, night light and power display}
