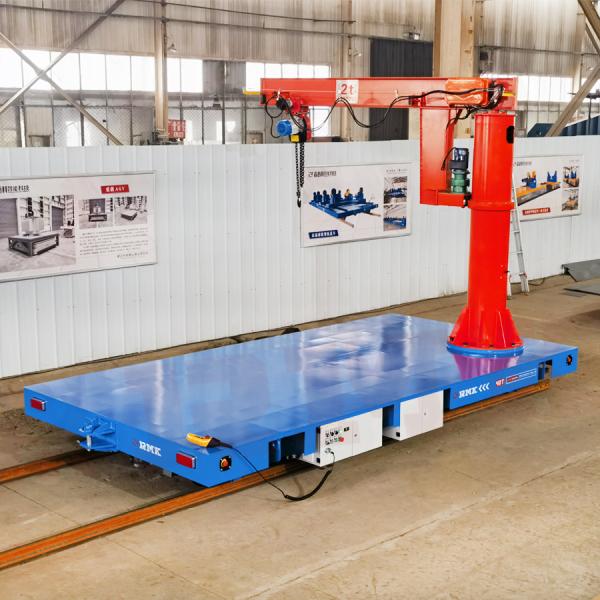

10 Tons material handling tool equipment industrial transfer cart
Currently, factories are beginning to use handling equipment to improve workshop efficiency. A straddle car is a kind of track-based in-plant handling tool car that solves the transportation of products between spans in the factory, also known as rail flat cars, electric flat cars, etc. Some straddle cars that need to achieve functions such as turning and turning in the factory can also be referred to as turning straddle cars. What about this kind of straddle car that can be turned? What are the characteristics?
| Technical parameters for Battery powered electric transfer carts KPX series |
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| | Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| | Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 |
Turning over the span vehicle, which is a track capable of turning over the span vehicle, has the following safety protection system accessories, such as alarm, emergency stop, collision avoidance, emergency stop, and so on. The specific introduction is as follows:
1. Audible and visual warning lights (front and rear, which will sound to warn others when the electric flat car is running);
2. Emergency stop button (in case of emergency, press the emergency stop button, and the car will immediately hold up to ensure safety);
3. Stop when encountering someone (the vehicle is equipped with sensing switches in front and back, which automatically stops when sensing an obstacle, avoiding a blind area for personnel to control);
4. Anti collision switch (to protect flat cars from damage)
5. Speed adjustment device (the running speed of the vehicle can be adjusted according to the actual situation).
6. Strong transportation capacity (steering crossover vehicles are electrically driven, which can carry a large amount of goods and improve transportation efficiency).
In short, the steering overstep vehicle is a very practical rail handling equipment with features such as safety and reliability, flexible steering, and strong transportation capacity, which can facilitate the transportation of products within the factory.
