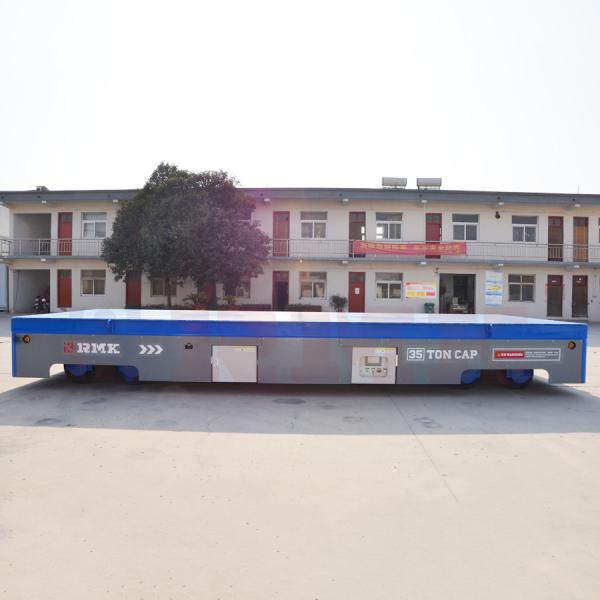

PLC Remote Control 35 Tons Hydraulic Turning Die Transfer Cart
PLC Remote Control 35 Tons Hydraulic Turning Die Transfer Cart Is One Customized Product Used For Mold Handling Between Different Workshops, This Battery Powered Transfer Cart Is Designed With Hydraulic Turning, This Design Can Make The Car Move And Turn More Safely And Smoothly.There Are Alarm Light, Emergency Stop Button, Laser Scanner.
All Electric Flatbed Transfer Cars Are Customized And Produced According To The Actual Needs Of Customers, Including Low-Voltage Electric Track Flat Cars, Cable Powered Flat Cars, Battery Flat Cars And Other Metallurgical And Mining Transportation Vehicles. They Are Suitable For Industries Such As Casting, Metallurgy, Mining, Building Materials, Grain, Logistics, And Have Long-Term Cooperation With Multiple Domestic Universities To Provide Flat Car Design, Manufacturing, Installation, And Debugging With Different Requirements.
Main Parameters About 35 Tons Transfer Cart:
1. Load Capacity: 35 Tons
2. Table Size:4000*2000*800mm
3. Power Supply Mode: Maintenance Free Battery
4. Speed: 0-20m/Min
5. Operate Mode: Remote Control+ Hand Pendant
6. Safety Device: Alarm Light, Emergency Stop Button,Laser Scanner
| Technical parameters for trackless electric transfer carts |
| rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| structure of frame | steel plates welded, beam structure |
| max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| ground requirement | cement floor | steel plate ground |
| table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 | 6000×2300 | 10000×3000 |
| height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| ground clearance(mm) | 50 | 75 |
| wheels base(mm) | 1500 | 1700 | 1800 | 2000 |
| axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| turning type | turning while driving with no stop |
| control method for turning | control button |
| turning structure | mechanical |
| motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 |
| wheel material | ZG55+hydropur ture |
| running speed(m/min) | 0-15 | 0-12 |
| brake principle | electric magnetic brake |
| operation method | with wire or no wire |
| battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| battery maintenance | free of maintenance |
| charger's installation | installed on cart | split-type |
| charger function | automatic charging |
| radar control | 3-0.3m, automatic stop for obstacles |
| warning equipment | sound and light |
| other functions | turning light, night light and power display |
